TP-Link 16 Port Gigabit POE Smart Switch

Dedicated 16-Port PoE+ Switch (250 W Budget) for Numerous Applications

Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port.

The total 250 W PoE power budget* for the 16× gigabit PoE+ ports makes it has wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and etc

Making Management Easy

TL-SG1218MPE offers network monitoring for users to observe traffic behavior.

Through its web-based user interface and management utility, the TL-SG1218MPE offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS.

System Self-Healing with PoE Auto Recovery

The switch automatically detects and reboots the PD devices, such as cameras and APs, when they fall offline or go unresponsive, guaranteeing the stable operation of PoE-connected devices, without need for manual monitoring and restart.

Intelligent Power Management to Prevent Power Overload

Automatically cuts lower priority ports’ power to ensure high-priority ports’ power supply when the total PoE power consumption exceeds 250 W. This protects the device from power overload operation.

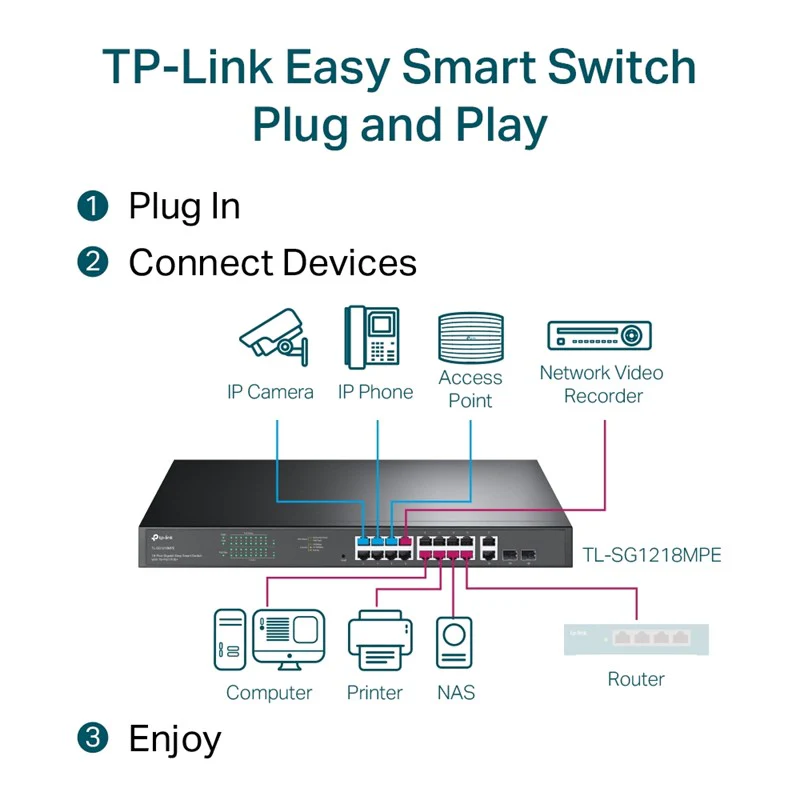

Multiple Application Scenarios

The TL-SG1218MPE is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices to provide gigabit connections, such as PCs, printers, and IPTV

Hardware Features

Standards and Protocols

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p

Interface

• 16× 10/100/1000 Mbps PoE+ RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
• 2× 10/100/1000 Mbps non-PoE RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
• 2× Combo Gigabit SFP Ports

Network Media

• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 1000BASE-X MMF, SMF

Fan Quantity

2 Fans

Physical Security Lock

Yes

Power Supply

100–240V AC, 50/60 Hz

PoE+ Ports(RJ45)

• Standard: 802.3at/802.3af compliant
• PoE+ Ports: Ports 1–16
• Power Supply: 250 W

Dimensions ( W x D x H )

17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)

Mounting

Rack Mountable

Max Power Consumption

• 21.4 W (220/50Hz. no PD connected)
• 296.3 W (220/50Hz. with 250 W PD connected)

Max Heat Dissipation

• 72.97 BTU/h (no PD connected)
• 1010.38 BTU/h (with 250 W PD connected)

Performance

Switching Capacity

36 Gbps

Packet Forwarding Rate

26.78 Mbps

MAC Address Table

8K

Packet Buffer Memory

4.1 Mbit

Jumbo Frame

10 KB

Software features

Quality of Service

• Support Port-based 802.1p/DSCP priority
• Support 4 priority queues
• Rate Limit
• Storm Control

L2 Features

• IGMP Snooping V1/V2/V3
• Static Link Aggregation
• Port Mirroring
• Cable Diagnostics
• Loop Prevention
• PoE Auto Recovery

VLAN

• Support up to 32 VLANs simultaneously (out of 4K VLAN IDs)
• MTU/Port/Tag VLAN

Management

• Web-based GUI
• Easy Smart Configuration Utility

Transmission Method

Store-And-Forward

Others

Certification

CE, FCC, RoHS

Package Contents

• TL-SG1218MPE
• Power Cord
• Installation Guide
• Rackmount Kit
• Rubber Feet

Environment

• Operating Temperature: 0–50 °C (32–122 °F)
• Storage Temperature: -40–70 °C (-40–158 °F)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
