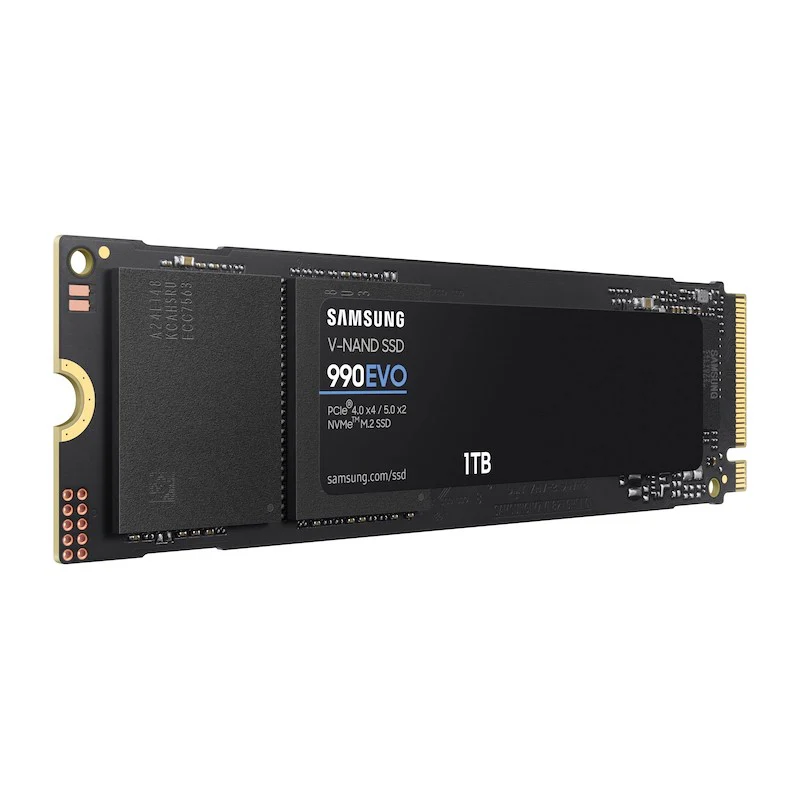

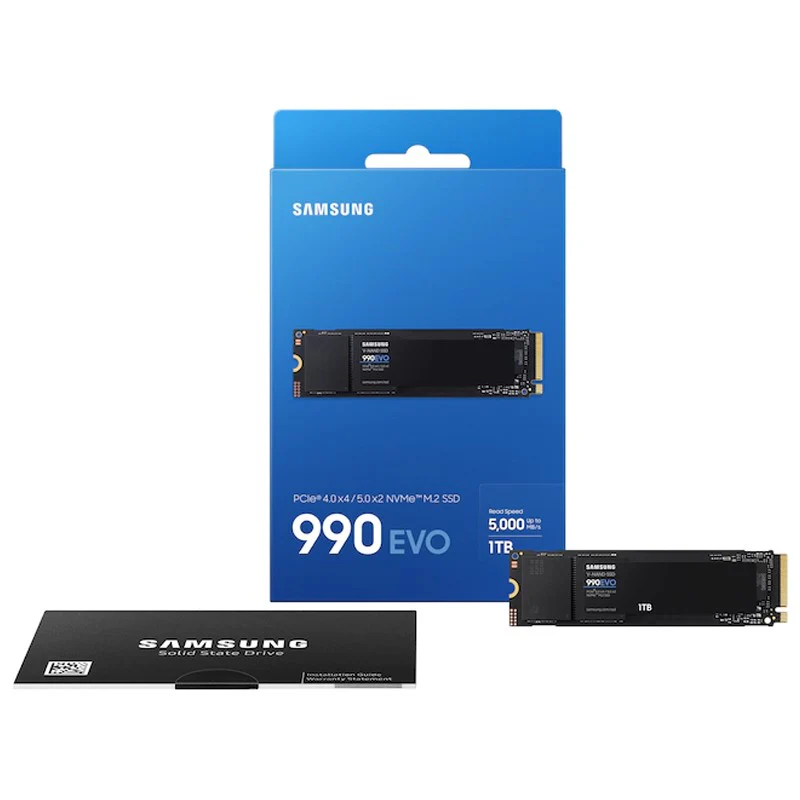

Samsung 990 EVO 1TB PCIe Gen 4x4, Gen 5x2 M.2 2280 NVMe Internal SSD

Product image 1
1 / 6
+1

Samsung 990 EVO 1TB PCIe Gen 4x4, Gen 5x2 M.2 2280 NVMe Internal SSD

Samsung 990 EVO 1TB PCIe Gen 4x4, Gen 5x2 M.2 2280 NVMe Internal SSD

Give Every Task A Boost

Read/Write Speeds up to 5,000/4,200 MB/s.

Load games and save files in a flash. Bring power to your productivity with reading and writing speeds of up to 5,000/4,200 MB/s. The 990 EVO provides continuous speed to keep you going.

It's A Power Move

Power Efficiency

Save the power for your performance. Get power efficiency all while experiencing up to 70% improved performance per watt over the 970 EVO Plus. It makes every move more effective with less power consumption overall.

Keep Your Cool

Smart Thermal Control

Now you can ramp things up without overheating the system. Samsung’s fine-tuned controller and heat spreading label deliver effective thermal control to avoid sudden performance drops mid-project. It cools things down even when things are running high, so your hard-earned checkpoints are saved.

Latest PCIe Technology

PCIe 4.0 And Gen 5.0

Optimized to support the latest technology for SSDs—990 EVO is compatible with PCIe 4.0 x4 and PCIe 5.0 x2. This means you get more bandwidth and higher data processing and performance.

Works Like Magic

Always Up-To-Date Via Magician Software

It’s not hocus-pocus. Your 990 EVO SSD performs like new with the always up-to-date Magician Software. Stay up to speed with the latest firmware updates, extra encryption, and continual monitoring of your drive health–it works like a charm.

Specifications:

Storage Capacity

1TB

Interface

PCIe® 4.0 x4 / 5.0 x2, NVMe 2.0

Form Factor

M.2 (2280)

Performance



Seq. Read (MB/s)

Up to 5,000 (performance may vary based on system hw)

Seq. Write (MB/s)

Up to 4,200 (performance may vary based on system hw)

Ran. Read (IOPS,QD1)

Up to 20,000 (performance may vary based on system hw)

Ran. Write (IOPS,QD1)

Up to 90,000 (performance may vary based on system hw)

Ran. Read (IOPS,QD32)

Up to 680,000 (performance may vary based on system hw)

Ran. Write (IOPS,QD32)

Up to 800,000 (performance may vary based on system hw)

Hardware



NAND

Samsung V-NAND TLC

Controller

In-House Controller

Cache Memory

HMB (Host Memory Buffer)

Power



Active (Read/Write)

4.9W / 4.5W

Device Sleep (L1.2)

Typical 60mW / Typical 5mW

Data Encryption

Class 0 (AES 256), TCG/Opal v2.0, MS eDrive (IEEE1667)

Total Bytes Written (TBW)

600

Samsung 990 EVO 1TB PCIe Gen 4x4, Gen 5x2 M.2 2280 NVMe Internal SSD

Give Every Task A Boost

Read/Write Speeds up to 5,000/4,200 MB/s.

Load games and save files in a flash. Bring power to your productivity with reading and writing speeds of up to 5,000/4,200 MB/s. The 990 EVO provides continuous speed to keep you going.

It's A Power Move

Power Efficiency

Save the power for your performance. Get power efficiency all while experiencing up to 70% improved performance per watt over the 970 EVO Plus. It makes every move more effective with less power consumption overall.

Keep Your Cool

Smart Thermal Control

Now you can ramp things up without overheating the system. Samsung’s fine-tuned controller and heat spreading label deliver effective thermal control to avoid sudden performance drops mid-project. It cools things down even when things are running high, so your hard-earned checkpoints are saved.

Latest PCIe Technology

PCIe 4.0 And Gen 5.0

Optimized to support the latest technology for SSDs—990 EVO is compatible with PCIe 4.0 x4 and PCIe 5.0 x2. This means you get more bandwidth and higher data processing and performance.

Works Like Magic

Always Up-To-Date Via Magician Software

It’s not hocus-pocus. Your 990 EVO SSD performs like new with the always up-to-date Magician Software. Stay up to speed with the latest firmware updates, extra encryption, and continual monitoring of your drive health–it works like a charm.

Specifications:

Storage Capacity

1TB

Interface

PCIe® 4.0 x4 / 5.0 x2, NVMe 2.0

Form Factor

M.2 (2280)

Performance



Seq. Read (MB/s)

Up to 5,000 (performance may vary based on system hw)

Seq. Write (MB/s)

Up to 4,200 (performance may vary based on system hw)

Ran. Read (IOPS,QD1)

Up to 20,000 (performance may vary based on system hw)

Ran. Write (IOPS,QD1)

Up to 90,000 (performance may vary based on system hw)

Ran. Read (IOPS,QD32)

Up to 680,000 (performance may vary based on system hw)

Ran. Write (IOPS,QD32)

Up to 800,000 (performance may vary based on system hw)

Hardware



NAND

Samsung V-NAND TLC

Controller

In-House Controller

Cache Memory

HMB (Host Memory Buffer)

Power



Active (Read/Write)

4.9W / 4.5W

Device Sleep (L1.2)

Typical 60mW / Typical 5mW

Data Encryption

Class 0 (AES 256), TCG/Opal v2.0, MS eDrive (IEEE1667)

Total Bytes Written (TBW)

600

$44.30

Original: $126.56

-65%
Samsung 990 EVO 1TB PCIe Gen 4x4, Gen 5x2 M.2 2280 NVMe Internal SSD

$126.56

$44.30

Description

Samsung 990 EVO 1TB PCIe Gen 4x4, Gen 5x2 M.2 2280 NVMe Internal SSD

Give Every Task A Boost

Read/Write Speeds up to 5,000/4,200 MB/s.

Load games and save files in a flash. Bring power to your productivity with reading and writing speeds of up to 5,000/4,200 MB/s. The 990 EVO provides continuous speed to keep you going.

It's A Power Move

Power Efficiency

Save the power for your performance. Get power efficiency all while experiencing up to 70% improved performance per watt over the 970 EVO Plus. It makes every move more effective with less power consumption overall.

Keep Your Cool

Smart Thermal Control

Now you can ramp things up without overheating the system. Samsung’s fine-tuned controller and heat spreading label deliver effective thermal control to avoid sudden performance drops mid-project. It cools things down even when things are running high, so your hard-earned checkpoints are saved.

Latest PCIe Technology

PCIe 4.0 And Gen 5.0

Optimized to support the latest technology for SSDs—990 EVO is compatible with PCIe 4.0 x4 and PCIe 5.0 x2. This means you get more bandwidth and higher data processing and performance.

Works Like Magic

Always Up-To-Date Via Magician Software

It’s not hocus-pocus. Your 990 EVO SSD performs like new with the always up-to-date Magician Software. Stay up to speed with the latest firmware updates, extra encryption, and continual monitoring of your drive health–it works like a charm.

Specifications:

Storage Capacity

1TB

Interface

PCIe® 4.0 x4 / 5.0 x2, NVMe 2.0

Form Factor

M.2 (2280)

Performance



Seq. Read (MB/s)

Up to 5,000 (performance may vary based on system hw)

Seq. Write (MB/s)

Up to 4,200 (performance may vary based on system hw)

Ran. Read (IOPS,QD1)

Up to 20,000 (performance may vary based on system hw)

Ran. Write (IOPS,QD1)

Up to 90,000 (performance may vary based on system hw)

Ran. Read (IOPS,QD32)

Up to 680,000 (performance may vary based on system hw)

Ran. Write (IOPS,QD32)

Up to 800,000 (performance may vary based on system hw)

Hardware



NAND

Samsung V-NAND TLC

Controller

In-House Controller

Cache Memory

HMB (Host Memory Buffer)

Power



Active (Read/Write)

4.9W / 4.5W

Device Sleep (L1.2)

Typical 60mW / Typical 5mW

Data Encryption

Class 0 (AES 256), TCG/Opal v2.0, MS eDrive (IEEE1667)

Total Bytes Written (TBW)

600
