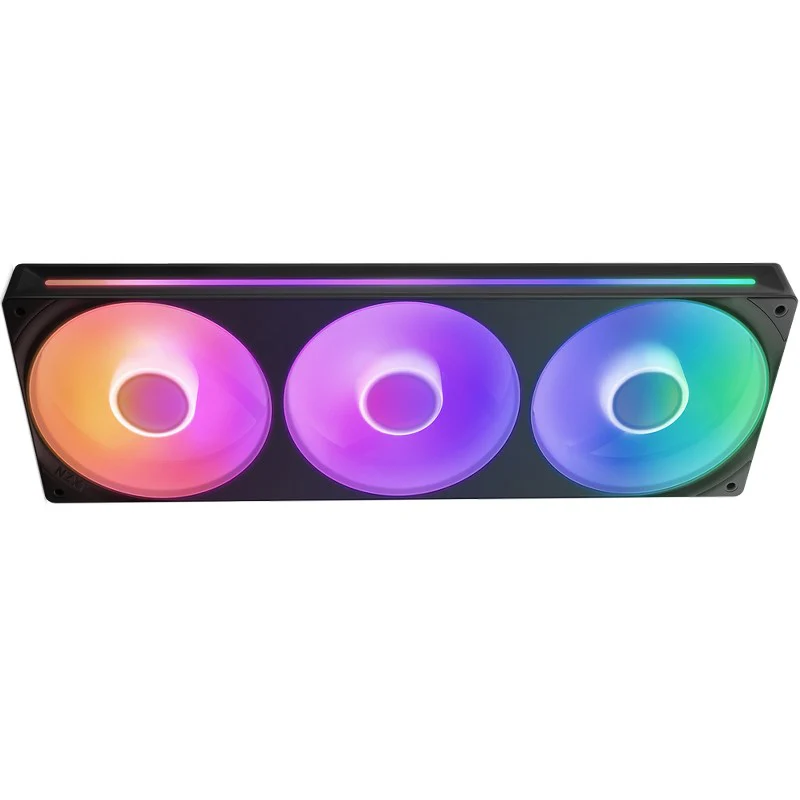

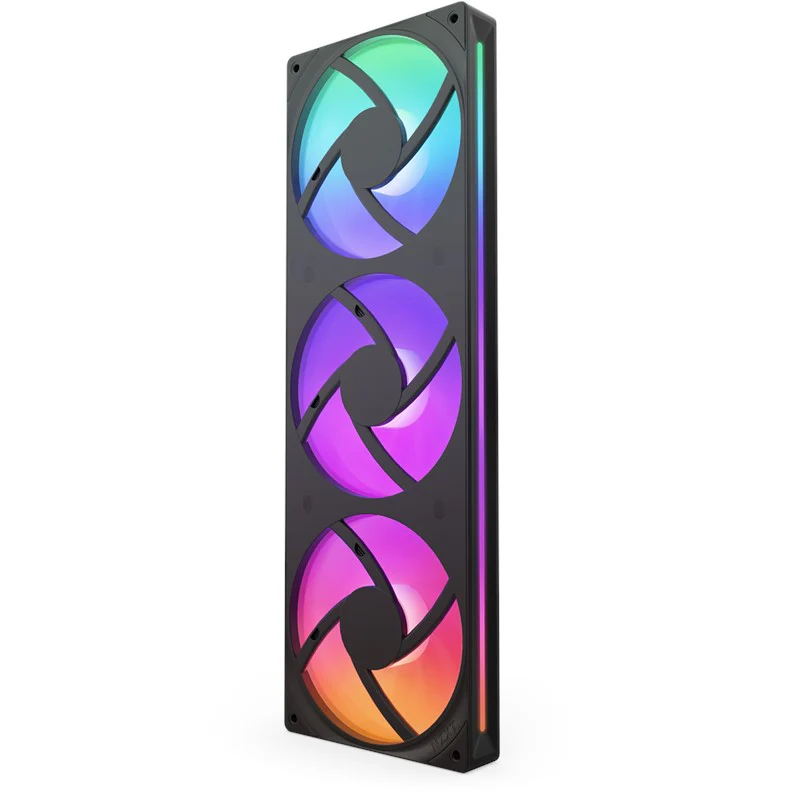

NZXT F360 RGB Core 360mm Single-Frame RGB Fan Unit

Overview

NZXT F Series RGB Core single-frame fans seamlessly integrate multiple fans for effortless installation while offering superior cooling, whisper-quiet performance, and striking RGB visuals.

All-in-one Design

Single-frame unit with integrated fans streamlines installation, setup, and lighting control.

Versatile Connectivity

Simply connect a single cable to an NZXT controller (sold separately) for lighting and speed control via NZXT CAM software. Or, connect to any motherboard's 5V ARGB header using the included splitter cable.

Optimal Performance

Blade design boosts static pressure to push air through tight spaces with superior airflow.

Fluid Dynamic Bearings

Ensures low noise, high rotational stability, and a 60,000-hour fan lifespan.

Radiant RGB Lighting

8 aRGB LEDs per fan hub shine through semi-translucent blades and frame side windows.

PWM Control

Dynamically adjusts fan speeds based on PC temperatures for optimal efficiency.

Silent Operation

Anti-vibration rubber corners dampen noise and Zero RPM Mode shuts fans off during light loads.

Dimensions

Height

360mm

Width

120mm

Depth

26mm

Fans

Speed

500 - 2,400 ± 250 RPM per fan

Airflow

75.12 CFM per fan

Static Pressure

3.3mm H₂O per fan

Noise

30.00 dBA per fan

Power Consumption

12V DC, 0.79A, 9.48W / 5V DC, 0.81A, 4.05W

Bearing

Fluid Dynamic Bearing

Output LED

8 LEDs per Fan

Connector

8-pin for PWM & RGB

Cable Length

1 x 600mm

Material

Plastic, Rubber, PCB

Life

60,000 Hours

Cable

Splitter Cable Connections & Cable Length

4-pin PWM Fan Cable (1 x 300mm) / 5V RGB & 4-pin NZXT RGB Cable (1 x 100mm)
