MSI PRO Z790-P WIFI DDR5 ATX Gaming Motherboard

Product image 1
1 / 5

MSI PRO Z790-P WIFI DDR5 ATX Gaming Motherboard

MSI PRO Z790-P WIFI DDR5 ATX Gaming Motherboard

The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.EXCLUSIVE FEATURESCONNECTIVITYTHERMAL SOLUTIONEXCLUSIVE FEATURESDigital PWM6-layer PCB with 2oz Thickened Copper2x 8 Pin Power ConnectorsPCIe Steel ArmorHIGH-SPEED TRANSMISSIONHigh speed features2.5G Network Solution

Lightning USB 20G

Latest Wi-Fi 6E

DDR5 SupportLightning Gen 5

Specifications:

Chipset INTEL Z790
CPU Support Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
  LGA 1700
Memory 4x DDR5, Maximum Memory Capacity 192GB
  Memory Support 7000+(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
  Max. overclocking frequency:
  • 1DPC 1R Max speed up to 7000+ MHz
  • 1DPC 2R Max speed up to 6600+ MHz
  • 2DPC 1R Max speed up to 6400+ MHz
  • 2DPC 2R Max speed up to 5600+ MHz
  Supports Intel® XMP 3.0 OC
  Supports Dual-Controller Dual-Channel mode
  Supports non-ECC, un-buffered memory
Onboard Graphics 1x HDMI™
  Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz*
  1x DisplayPort
  Support DP 1.4, maximum resolution of 4K 60Hz*
  *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Expansion Slot 3x PCI-E x16 slot
  1x PCI-E x1 slot
  PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
  PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
  PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
  PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
Storage 4x M.2
  M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices
  M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
  M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
  M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
  6x SATA 6G
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
  Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
USB 4x USB 2.0 (Rear)
  4x USB 2.0 (Front)
  2x USB 3.2 Gen1 Type A (Rear)
  4x USB 3.2 Gen1 Type A (Front)
  1x USB 3.2 Gen2 Type A (Rear)
  1x USB 3.2 Gen2 Type C (Front)
  1x USB 3.2 Gen2x2 Type C (Rear)
LAN Intel® 2.5Gbps LAN
Wireless / Bluetooth Intel® Wi-Fi 6E
  The Wireless module is pre-installed in the M.2 (Key-E) slot
  Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
  Supports 802.11 a/ b/ g/ n/ ac/ ax
  Supports Bluetooth® 5.3, FIPS, FISMA
  * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
  ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
Audio Realtek® ALC897 Codec
  7.1-Channel High Definition Audio
Internal I/O 1x Power Connector(ATX_PWR)
  2x Power Connector(CPU_PWR)
  1x CPU Fan
  1x Pump Fan
  6x System Fan
  2x Front Panel (JFP)
  1x Chassis Intrusion (JCI)
  1x Front Audio (JAUD)
  1x TBT connector (JTBT, supports RTD3)
  1x Tuning Controller connector(JDASH)
  2x Addressable V2 RGB LED connector (JARGB_V2)
  1x RGB LED connector(JRGB)
  1x TPM pin header(Support TPM 2.0)
  4x USB 2.0 ports
  4x USB 3.2 Gen1 Type A ports
  1x USB 3.2 Gen2 Type C ports
LED Feature 4x EZ Debug LED

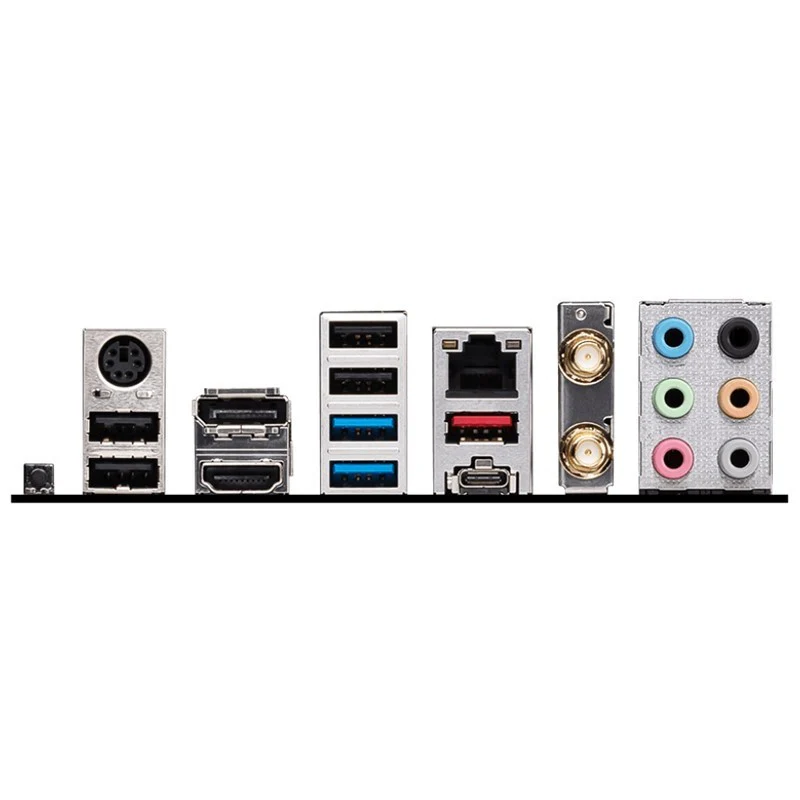

Back Panel Ports Keyboard / Mouse
  DisplayPort
  USB 2.0
  2.5G LAN
  Wi-Fi / Bluetooth
  Audio Connectors
  Flash BIOS Button
  USB 2.0
  HDMI™
  USB 3.2 Gen 1 5Gbps (Type-A)
  USB 3.2 Gen 2x2 20Gbps (Type-C)
  USB 3.2 Gen 2 10Gbps (Type-A)
Operating System Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB Dimension ATX
  243.84mmx304.8mm



MSI PRO Z790-P WIFI DDR5 ATX Gaming Motherboard

The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.EXCLUSIVE FEATURESCONNECTIVITYTHERMAL SOLUTIONEXCLUSIVE FEATURESDigital PWM6-layer PCB with 2oz Thickened Copper2x 8 Pin Power ConnectorsPCIe Steel ArmorHIGH-SPEED TRANSMISSIONHigh speed features2.5G Network Solution

Lightning USB 20G

Latest Wi-Fi 6E

DDR5 SupportLightning Gen 5

Specifications:

Chipset INTEL Z790
CPU Support Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
  LGA 1700
Memory 4x DDR5, Maximum Memory Capacity 192GB
  Memory Support 7000+(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
  Max. overclocking frequency:
  • 1DPC 1R Max speed up to 7000+ MHz
  • 1DPC 2R Max speed up to 6600+ MHz
  • 2DPC 1R Max speed up to 6400+ MHz
  • 2DPC 2R Max speed up to 5600+ MHz
  Supports Intel® XMP 3.0 OC
  Supports Dual-Controller Dual-Channel mode
  Supports non-ECC, un-buffered memory
Onboard Graphics 1x HDMI™
  Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz*
  1x DisplayPort
  Support DP 1.4, maximum resolution of 4K 60Hz*
  *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Expansion Slot 3x PCI-E x16 slot
  1x PCI-E x1 slot
  PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
  PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
  PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
  PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
Storage 4x M.2
  M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices
  M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
  M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
  M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
  6x SATA 6G
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
  Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
USB 4x USB 2.0 (Rear)
  4x USB 2.0 (Front)
  2x USB 3.2 Gen1 Type A (Rear)
  4x USB 3.2 Gen1 Type A (Front)
  1x USB 3.2 Gen2 Type A (Rear)
  1x USB 3.2 Gen2 Type C (Front)
  1x USB 3.2 Gen2x2 Type C (Rear)
LAN Intel® 2.5Gbps LAN
Wireless / Bluetooth Intel® Wi-Fi 6E
  The Wireless module is pre-installed in the M.2 (Key-E) slot
  Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
  Supports 802.11 a/ b/ g/ n/ ac/ ax
  Supports Bluetooth® 5.3, FIPS, FISMA
  * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
  ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
Audio Realtek® ALC897 Codec
  7.1-Channel High Definition Audio
Internal I/O 1x Power Connector(ATX_PWR)
  2x Power Connector(CPU_PWR)
  1x CPU Fan
  1x Pump Fan
  6x System Fan
  2x Front Panel (JFP)
  1x Chassis Intrusion (JCI)
  1x Front Audio (JAUD)
  1x TBT connector (JTBT, supports RTD3)
  1x Tuning Controller connector(JDASH)
  2x Addressable V2 RGB LED connector (JARGB_V2)
  1x RGB LED connector(JRGB)
  1x TPM pin header(Support TPM 2.0)
  4x USB 2.0 ports
  4x USB 3.2 Gen1 Type A ports
  1x USB 3.2 Gen2 Type C ports
LED Feature 4x EZ Debug LED
Back Panel Ports Keyboard / Mouse
  DisplayPort
  USB 2.0
  2.5G LAN
  Wi-Fi / Bluetooth
  Audio Connectors
  Flash BIOS Button
  USB 2.0
  HDMI™
  USB 3.2 Gen 1 5Gbps (Type-A)
  USB 3.2 Gen 2x2 20Gbps (Type-C)
  USB 3.2 Gen 2 10Gbps (Type-A)
Operating System Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB Dimension ATX
  243.84mmx304.8mm



$89.73

Original: $256.37

-65%
MSI PRO Z790-P WIFI DDR5 ATX Gaming Motherboard—

$256.37

$89.73
