Chipset
|
INTEL H610
|
CPU
|
Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
|
|
LGA 1700
|
Memory
|
2x DDR4, Maximum Memory Capacity 64GB
|
|
Memory Support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
|
|
Supports Dual-Channel mode
|
|
Supports non-ECC, un-buffered memory
|
Onboard Graphics
|
1x HDMI™
|
|
Support HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz*
|
|
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
|
Slot
|
1x PCI-E x16 slot
|
|
1x PCI-E x1 slot
|
|
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
|
|
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
|
Audio
|
Realtek® ALC897 Codec
|
|
7.1-Channel High Definition Audio
|
Storage
|
1x M.2
|
|
M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 2280/2260/2242 devices
|
|
2x SATA 6G
|
USB
|
4x USB 2.0 (Rear)
|
|
4x USB 2.0 (Front)
|
|
2x USB 5Gbps Type A (Rear)
|
|
2x USB 5Gbps Type A (Front)
|
LAN
|
Realtek® RTL8111H Gigabit LAN
|
Internal IO
|
1x Power Connector(ATX_PWR)
|
|
1x Power Connector(CPU_PWR)
|
|
1x CPU Fan
|
|
1x System Fan
|
|
2x Front Panel (JFP)
|
|
1x Chassis Intrusion (JCI)
|
|
1x Front Audio (JAUD)
|
|
1x Com Port (JCOM)
|
|
1x TPM pin header(Support TPM 2.0)
|
|
4x USB 2.0 ports
|
LED Feature
|
4x EZ Debug LED
|

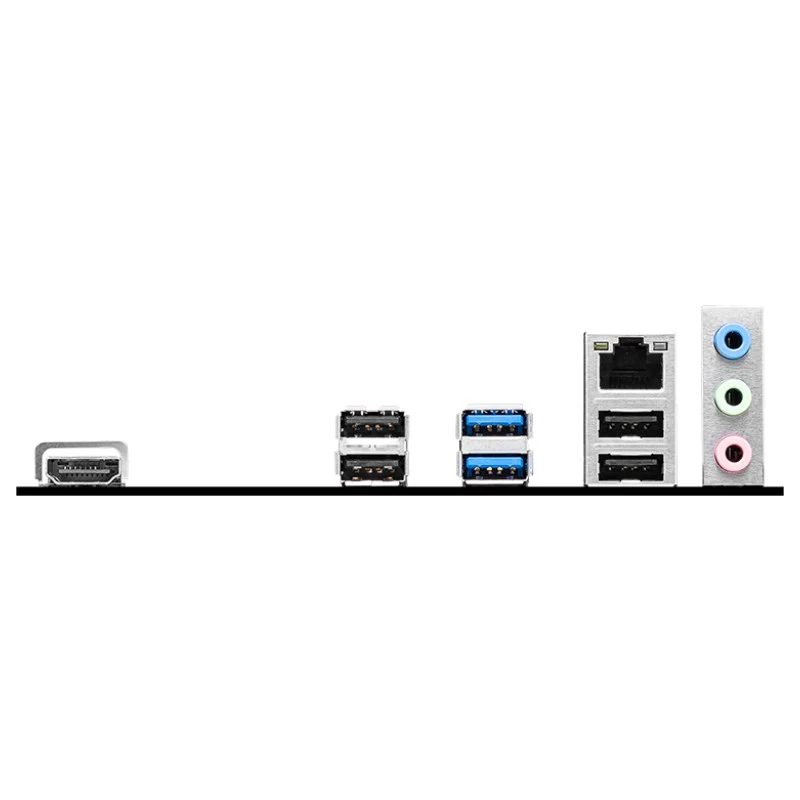

Back Panel Ports
|
HDMI™
|
|
USB 3.2 Gen 1 5Gbps (Type-A)
|
|
USB 2.0
|
|
LAN port
|
|
Audio Connectors
|
|
USB 2.0
|
Operating System
|
Support for Windows® 11 64-bit, Windows® 10 64-bit
|
PCB Info
|
mATX
|
|
200mmx236.16mm
|
