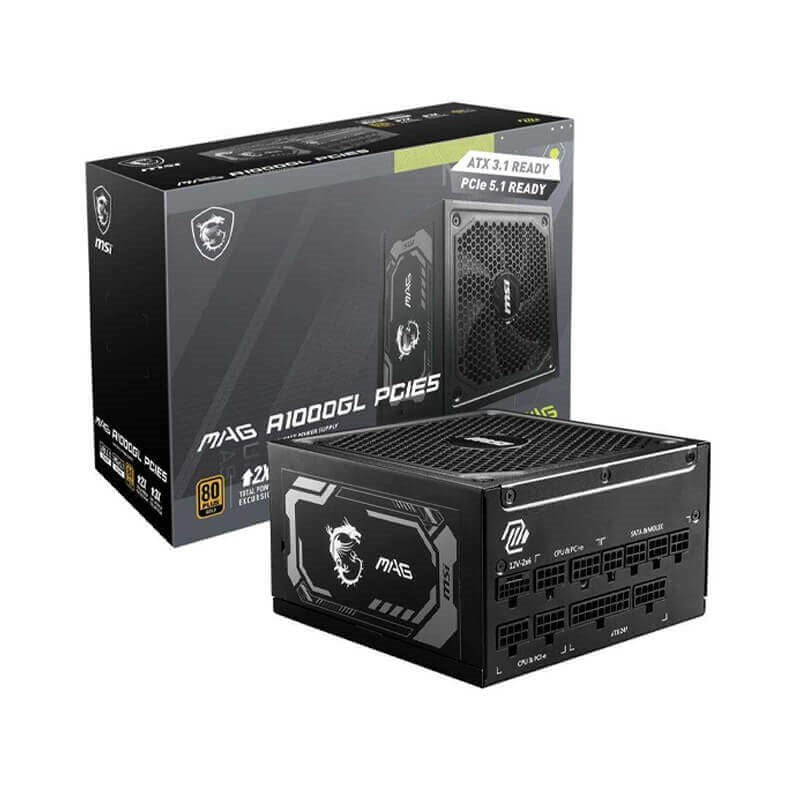

MSI MAG A1000GL PCIe5, ATX 3.1, 80 Plus Gold Fully Modular Gaming Power Supply

Overflow with Power
The MAG A1000GL PCIE5 power supply provides 80 PLUS Gold-certified power efficiency, ATX 3.1 ready, and PCIe 5.1 GPU support, cooled by a 135 mm fluid dynamic bearing (FDB) fan for superior performance. Outfitted with a full-bridge LLC DC-to-DC topology, a compact ATX frame, and a fully modular design, this PSU is ideal for spatially-efficient PCs requiring robust, no-nonsense performance.

80 PLUS Gold
The efficiency of a power supply directly influences system performance and power consumption. An 80 PLUS Gold certified rating means higher efficiency (up to 90%) and reduces internal thermal loading.

ATX 3.1 Ready & Fully Modular Cable Design
ATX 3.1 ready power supplies can handle up to 2x total power excursions and 3x GPU power excursions. A fully modular design means that only the connectors required by the build are used. This significantly reduces cable clutter, simplifying the overall build and improving airflow.

PCIe 5.1 GPU Support (Native 16-pin Connector)
Through the native 16-pin (12V-2x6) PCIe connector, the PSU can provide up to 600W of power to a PCIe 5.1 GPU, and includes yellow highlights to help identify a loose connection. Extra GPU power feeds (8-pin VGA connectors) support a broad array of NVIDIA and AMD graphics cards.

Compact Size
A compact 150mm-long and 150mm-wide ATX form factor ensures a comfortable and easy fit in most PC cases. This frees up more space for cable management and airflow to the rest of the system.

Flat Black Cables
Flat black modular cables help reduce clutter, improve airflow, and create a cleaner build. Keep the extra cables in an included storage bag.

135 mm FDB Fan
A 135 mm Fluid-Dynamic Bearing (FDB) fan offers reliable cooling performance that balances both noise and temperature output.

Full Bridege LCC Topology + DC-to-DC
Robust internals support a wide range of AC inputs, while delivering stable output for high performance components. A full-bridge LLC with DC-to-DC converter includes an active PFC design (OCP, OVP, OPP, OTP, SCP, UVP).

Extensive Connectitity
A wide range of connectivity options provides extensive hardware support. Connect and upgrade multiple hard drives, SSDs, graphics cards and other components quickly and easily.

Specification:
