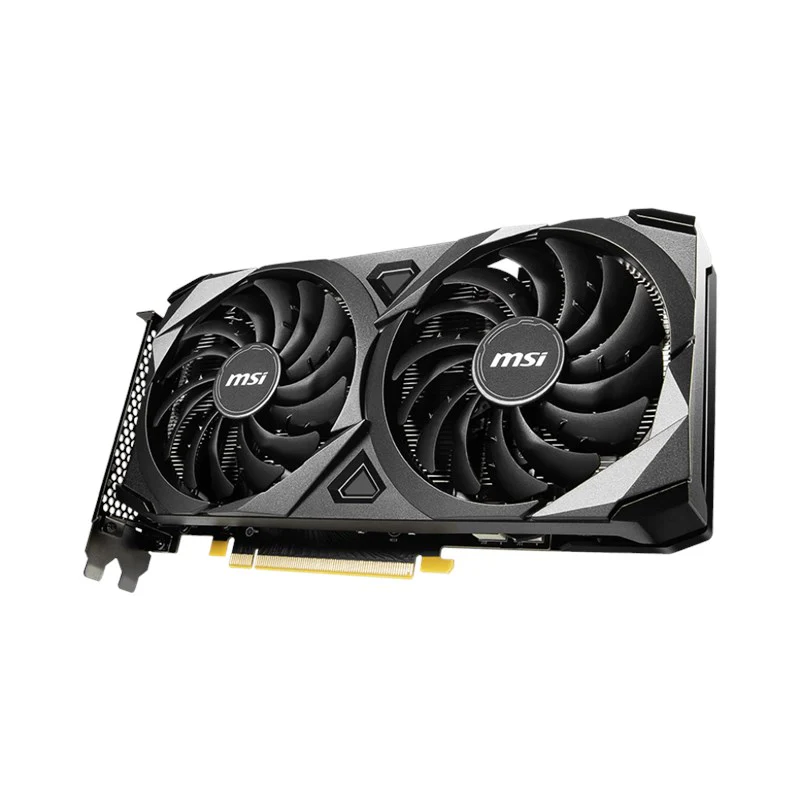

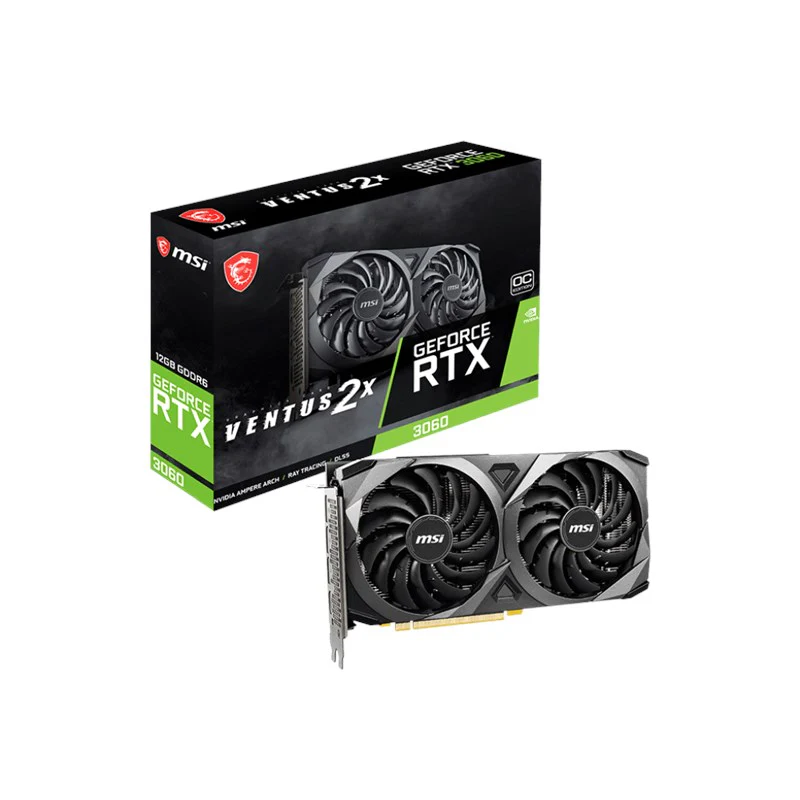

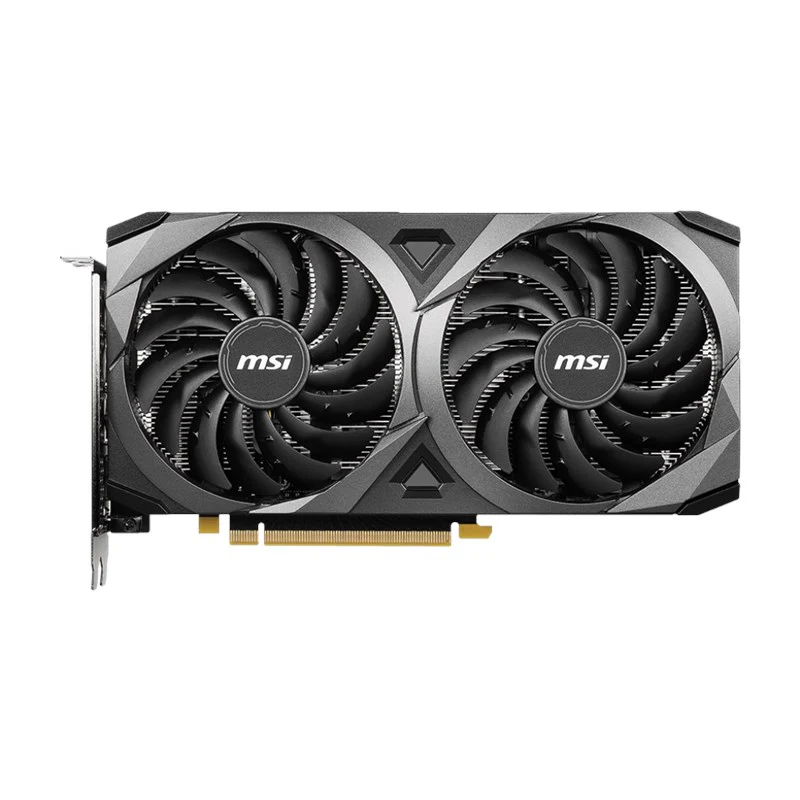

MSI GeForce RTX 3060 VENTUS 2X 12GB GDDR6 Gaming Graphics Card

VENTUS

VENTUS brings a performance-focused design that maintains the essentials to accomplish any task at hand. Rocking a trusted dual fan arrangement laid into a rigid industrial design lets this sharp looking graphics card fit into any build.

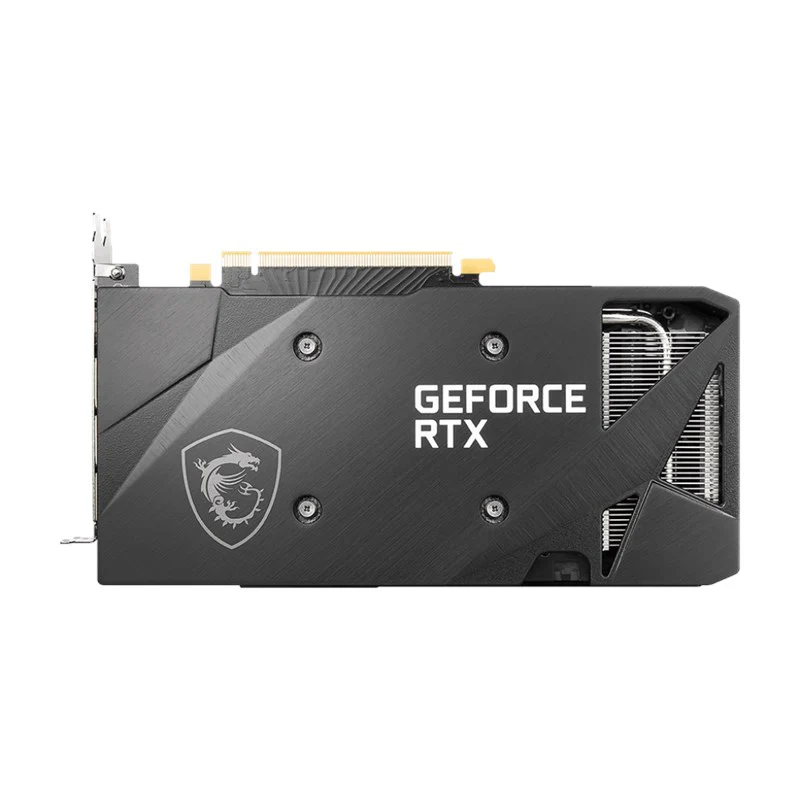

Reinforcing Backplate

A clean-looking brushed-finish backplate reinforces the length of the card.

Traces of Brilliance

TAILORED PCB DESIGN

Not all circuit boards are created equal. A custom PCB Design provides greater reliability and beefed up power circuitry for pushing the card to its limits.

We Made 10 Million Clicks, You Only Need 1

Bringing It All Together

MSI's exclusive MSI Center software helps you get the most out of your MSI products. Monitor, tweak and optimize in real-time with just a few clicks.

Model Name

GeForce RTX 3060 VENTUS 2X 12G

Graphics Processing Unit

NVIDIA GeForce RTX 3060

Interface

PCI Express Gen 4

Core Clocks

Boost: 1807 MHz

CUDA CORES

3584

Memory Speed

15 Gbps

Memory

12 GB GDDR6

Memory Bus

192-bit

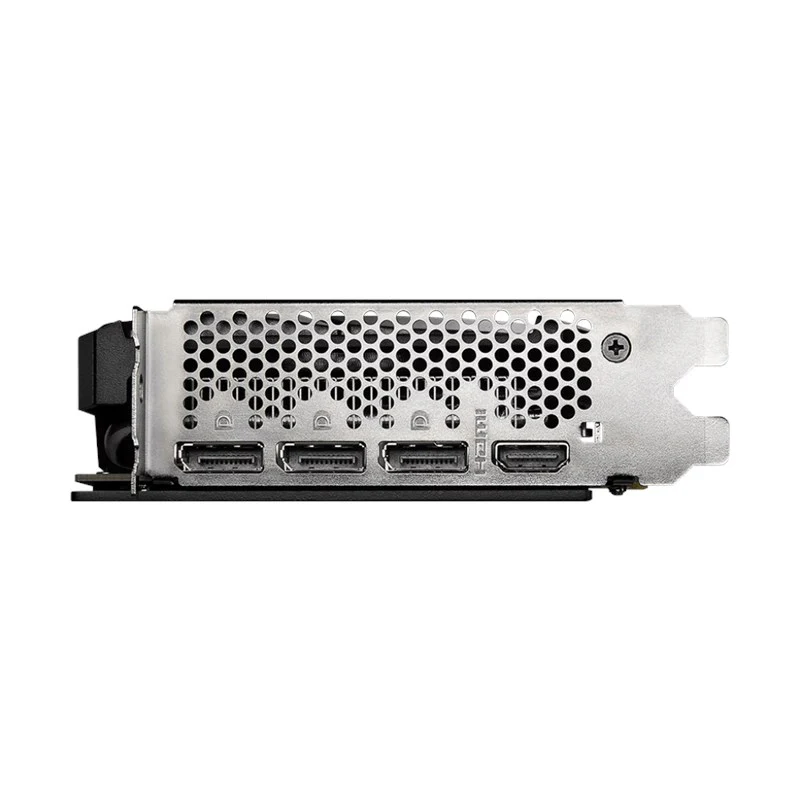

Output

DisplayPort x 3 (v1.4) / HDMI x 1 (Supports 4K@120 Hz as specified in HDMI 2.1)

HDCP Support

Yes

Power consumption

170W

Power connectors

8-pin x 1

Recommended PSU

550W

Card Dimension (mm)

235 x 124 x 42mm

Weight (Card / Package)

675 g / 1030 g

DirectX Version Support

12 API

OpenGL Version Support

4.6

Maximum Displays

4

VR Ready

Yes

G-SYNC technology

Yes

Adaptive Vertical Sync

Yes

Digital Maximum Resolution

7680 x 4320
