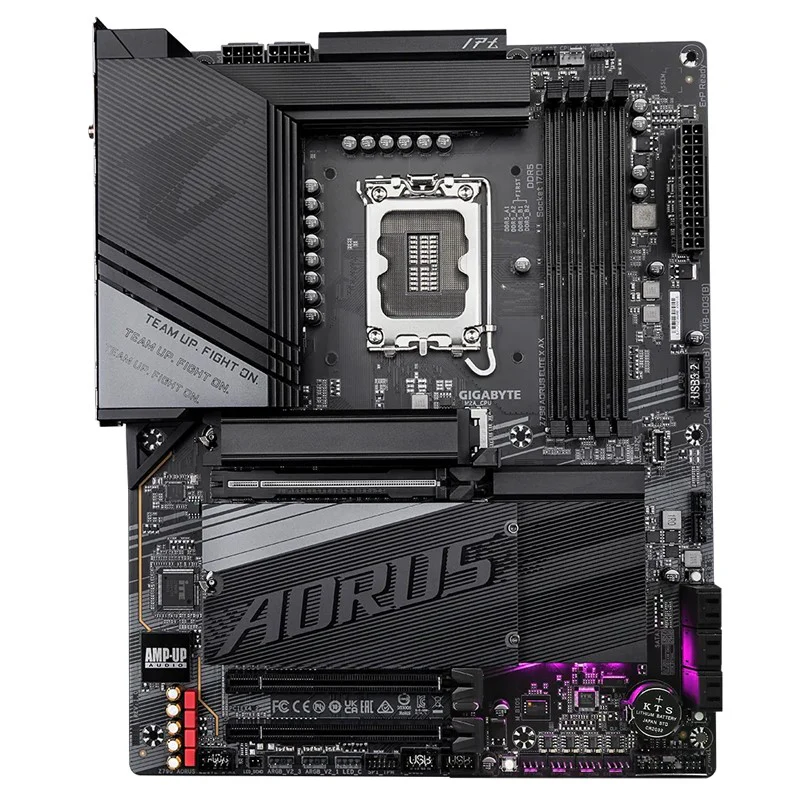

CPU
|
LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*
|
|
L3 cache varies with CPU
|
Chipset
|
Intel® Z790 Express Chipset
|
Memory
|
Support for DDR5 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
|
|
4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory Dual channel memory architecture
|
|
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
|
|
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
|
|
Support for Extreme Memory Profile (XMP) memory modules
|
Onboard Graphics
|
Integrated Graphics Processor-Intel® HD Graphics support:
|
|
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
|
|
* Support for HDMI 2.1 version and HDCP 2.3.
|
|
** Support native HDMI 2.1 TMDS compatible ports.
|
|
- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
|
|
* Support for DisplayPort 1.2 version and HDCP 2.3
|
|
(Graphics specifications may vary depending on CPU support.)
|
Audio
|
Realtek® ALC1220-VB CODEC
|
|
* The back panel line out jack supports DSD audio.
|
|
High Definition Audio
|
|
2/4/5.1/7.1-channel
|
|
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
|
|
Support for S/PDIF Out
|
LAN
|
Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
|
Wireless Communication module
|
Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.0)
|
|
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
|
|
- BLUETOOTH 5.3
|
|
- Support for 11ax 160MHz wireless standard
|
|
Intel® Wi-Fi 6E AX211 (For PCB rev. 1.1)
|
|
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
|
|
- BLUETOOTH 5.3
|
|
- Support for 11ax 160MHz wireless standard
|
|
(Actual data rate may vary depending on environment and equipment.)
|
Expansion Slots
|
CPU:
|
|
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
|
|
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
|
|
Chipset:
|
|
- 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1/PCIEX4_2)
|
Storage Interface
|
CPU:
|
|
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
|
|
Chipset:
|
|
- 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB)
|
|
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2M_SB)
|
|
- 6 x SATA 6Gb/s connectors
|
|
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
|
|
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
|
|
* Refer to "2-8 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
|
USB
|
Chipset:
|
|
- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support
|
|
- 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the
|
|
internal USB header
|
|
- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
|
|
- 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available
|
|
through the internal USB header)
|
|
Chipset+2 USB 2.0 Hubs:
|
|
- 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through
|
|
the internal USB headers)
|
Internal I/O Connectors
|
1 x 24-pin ATX main power connector
|
|
2 x 8-pin ATX 12V power connectors
|
|
1 x CPU fan header
|
|
1 x CPU fan/water cooling pump header
|
|
3 x system fan headers
|
|
1 x system fan/water cooling pump header
|
|
3 x addressable RGB Gen2 LED strip headers
|
|
1 x RGB LED strip header
|
|
4 x M.2 Socket 3 connectors
|
|
6 x SATA 6Gb/s connectors
|
|
1 x front panel header
|
|
1 x front panel audio header
|
|
1 x USB Type-C® header, with USB 3.2 Gen 2 support
|
|
1 x USB 3.2 Gen 1 header
|
|
2 x USB 2.0/1.1 headers
|
|
2 x Thunderbolt™ add-in card connectors
|
|
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
|
|
1 x reset button
|
|
1 x Q-Flash Plus button
|
|
1 x Clear CMOS button
|
|
1 x reset jumper
|
|
1 x Clear CMOS jumper
|
Back Panel Connectors
|
1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
|
|
2 x USB 3.2 Gen 2 Type-A ports (red)
|
|
3 x USB 3.2 Gen 1 ports
|
|
4 x USB 2.0/1.1 ports
|
|
2 x SMA antenna connectors (2T2R) jk
|
|
1 x HDMI port
|
|
1 x DisplayPort
|
|
1 x RJ-45 port
|
|
1 x optical S/PDIF Out connector
|
|
2 x audio jacks
|
I/O Controller
|
iTE® I/O Controller Chip
|
H/W Monitoring
|
Voltage detection
|
|
Temperature detection
|
|
Fan speed detection
|
|
Water cooling flow rate detection
|
|
Fan fail warning
|
|
Fan speed control
|
|
* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
|
BIOS
|
1 x 256 Mbit flash
|
|
Use of licensed AMI UEFI BIOS
|
|
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
|
Unique Features
|
Support for GIGABYTE Control Center (GCC)
|
|
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
|
|
Support for Q-Flash
|
|
Support for Q-Flash Plus
|
|
Support for Smart Backup
|
Operating System
|
Support for Windows 11 64-bit
|
|
Support for Windows 10 64-bit
|
Form Factor
|
ATX Form Factor; 30.5cm x 24.4cm
|
